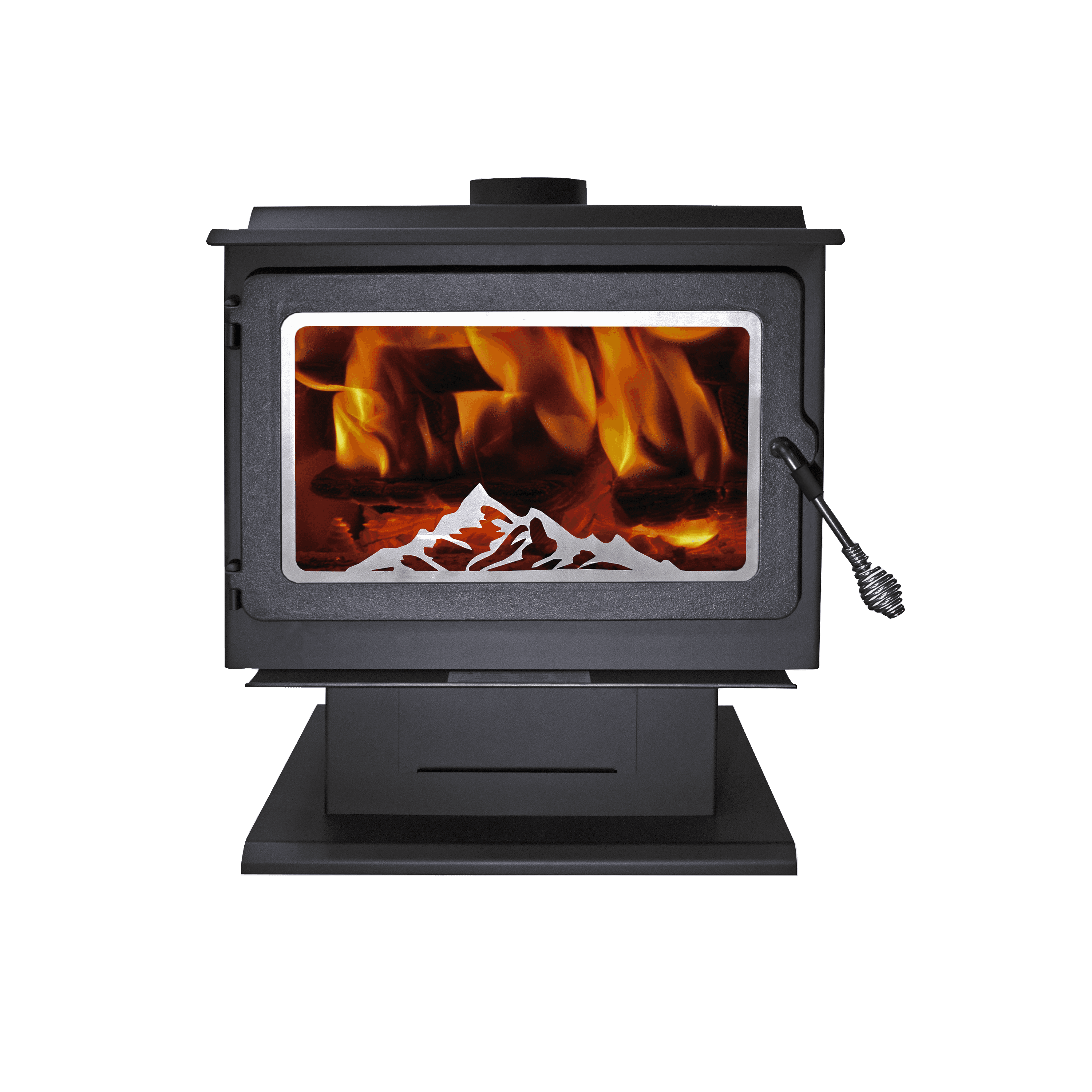

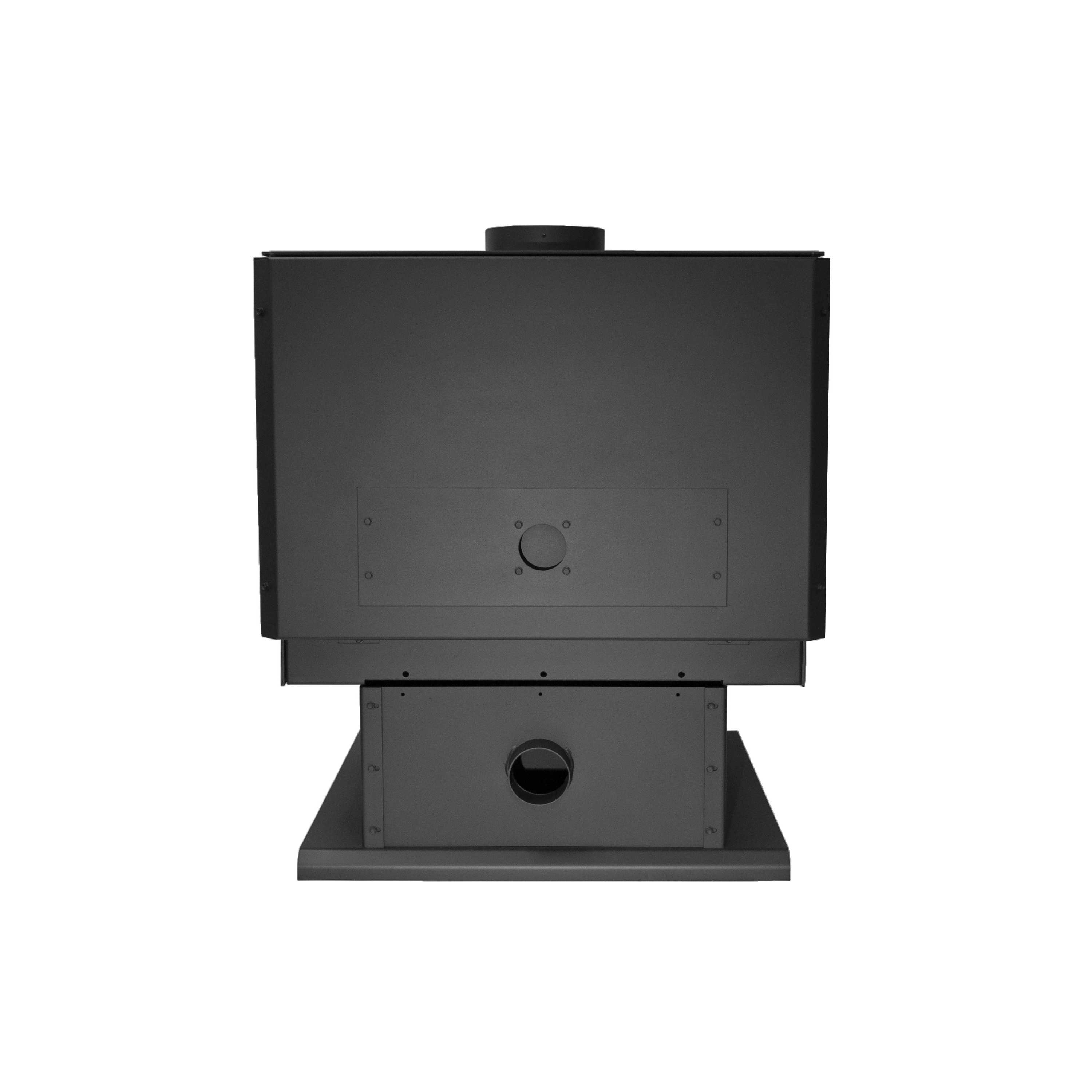

15-W08 WITH BLOWER
Complete your purchase
This 2,400 ft² wood stove is a great choice for moderately-sized and larger homes. The 3.2 ft³ firebox with XBT Technology holds logs up to 22'' long and can burn through the night with a full load of wood.
Integrated, wrap-around heat shields offer safer operation and more placement options, and stylish, cool-touch spring handles accent the stove’s classic style. The cast iron door's extra-large viewing glass gives a full, beautiful view of the fire, and a free room air blower is included.
• Made in USA
• Heats up to 2,400 ft²
• Burns wood logs up to 22" long
• Up to 14 hrs. burn time
• EPA's certification means high efficiency and low emissions - you'll use less fuel for the same amount of heat as older, non-certified stoves
• Mobile home approved (USA only)
• Cast-iron door with removable decorative mountain scene
• Blower: Included. Variable speed with 3 position switch (Off, Low, High)
Fuel type | Dry cordwood (16" recommended) |
Recommended heating area | Up to 2,400 |
EPA loading volume | 2.86 ft³ |
Maximum burn time | 14 h |
Maximum heat output-dry cordwood | 72,184 BTU/h (21.2 kW) |
Minimum overall heat output rate | 17,521 BTU/h (5.1 kW) |
Maximum overall heat output rate | 65,853 BTU/h (19.3 kW) |
Average overall efficiency-dry cordwood (HHV) | 72% |
Average overall efficiency-dry cordwood (LHV) | 77% |
Optimum efficiency | 78% |
Optimum heat transfer efficiency | 78% |
Average particulate emission rate | 1.8 g/h |
Average CO | 1.9 g/min |
From serial # | 100 |
To serial number | 1000 |
Certifications | EPA-2020 |
Mobile home approved | Yes, US only |
Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
Overall dimension (Width) | 27" |
Overall dimension (Height) | 33 1/2" |
Overall dimension (Depth) | 26" |
Premium quality blower included (CFM) | 65 CFM included |
Combustion technology | Non catalytic |
Stainless-steel secondary-air system | Yes |
Flue outlet diameter | 6" |
Distance-center of the flue outlet to back unit | 8 3/4" |
Distance-center of the flue outlet to side unit | 13 1/2" |
Recommended chimney diameter | 6" |
Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
Minimum chimney height | 12' |
Door type | Single, glass with cast iron frame |
Door opening size (Width) | 20 1/2" |
Door opening size (Height) | 10" |
Glass type | Ceramic glass |
Glass surface - W x H | 20 3/4" x 12 5/8" |
Steel thickness-body | 3/16" |
Steel thickness-top | 3/16'' |
Firebox size (Width) | 22 3/4" |
Firebox size (Height) | 12 1/4" |
Firebox size (Depth) | 17 3/4" |
Log positioning | Loading over width |
Maximum log length | 22" |
Firebox lined with refractory bricks | Yes |
Baffle type | Ceramic fiberboard (2 layers of 1/2" ea.) |
High-efficiency certified appliance | Yes, EPA 2020 approved |
Canadian Standard (emissions) | CSA B415.1-10 |
USA Standard (emissions) | ASTM E3053-17, EPA Alt 125 |
Canadian Standard (safety) | ULC-S 627-00 |
USA Standard (safety) | UL 1492-2011 |
Warranty | 5 years limited |
Shipping weight | 445 lb (202 kg) |
Clearances to combustibles* | Canada United-States |
Single wall pipeDouble wall pipeSingle wall pipeDouble wall pipe | |
Clearance - Back wall | 6"6"6"6" |
---|---|
Clearance - Side wall | 19"19"19"19" |
Clearance - Corner | 5"5"5"5" |
Clearance - Base of the unit to ceiling** | 62"62"62"62" |
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
