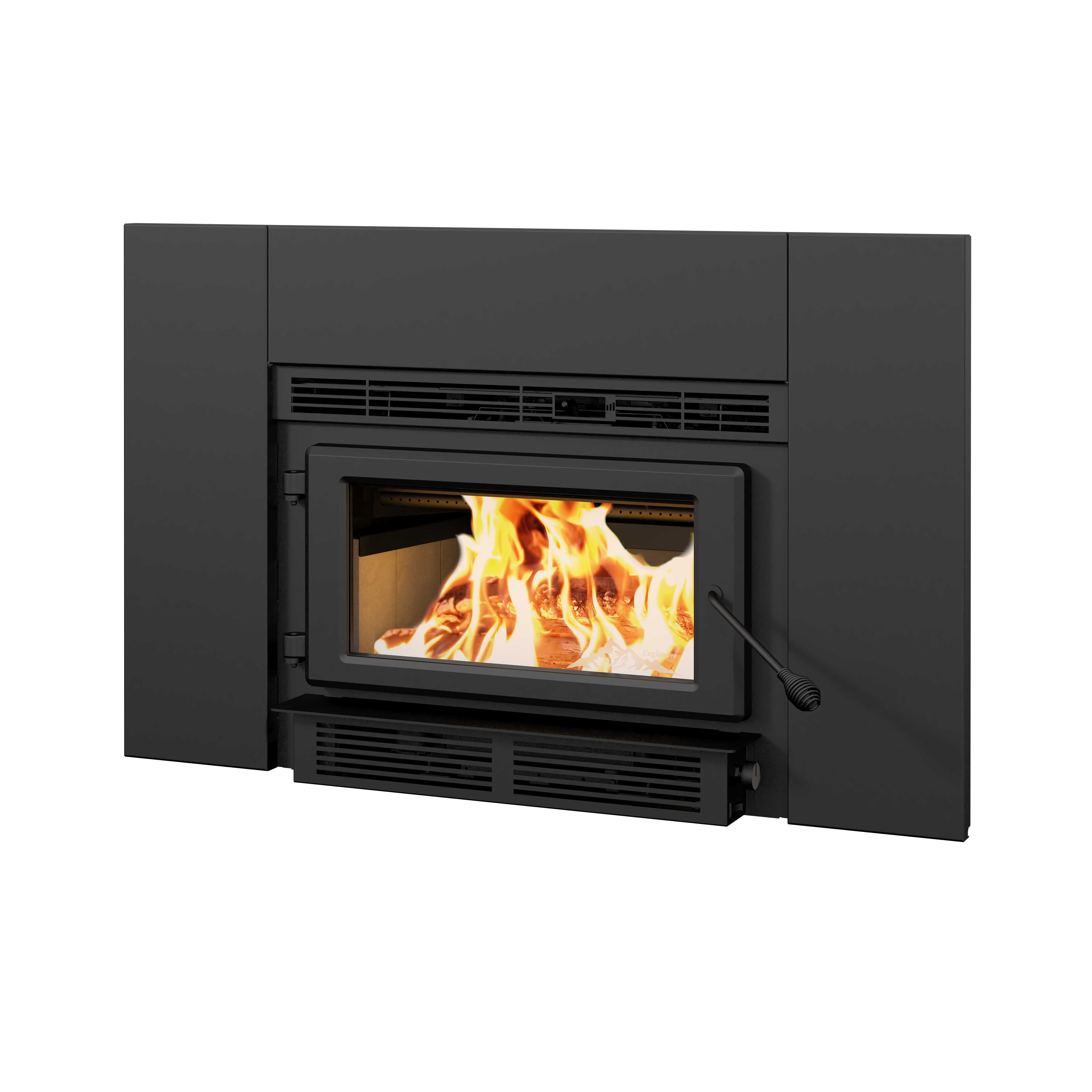

Wood Insert - BLUE RIDGE 150-I
Complete your purchase
AC01213
FIRESCREEN DOOR
AC01298
5"Ø FRESH AIR INTAKE KIT
AC02082
32" x 44" CUTTABLE FACEPLATE (18 GA)
Warning: Wood-burning inserts must only be installed inside an existing masonry fireplace and never in a wooden or combustible structure.
The large glass of the Blue Ridge 150-I surface highlights a panoramic view of the flames to fully enjoy your moments near the fire. This compact unit that has tapered top and sides for easy installation in smaller hearths. The deep bottom of its combustion chamber allows ash to accumulate and reduces the frequency of cleaning.
Included: 26" x 42" faceplate, air intake damper and 90 CFM blower with thermodisc
Suitable for masonry fireplaces only
- High efficiency 1.1 ft³ firebox
- Up to 7 hours burn time
- Lightweight steel faceplate with hooks that snap onto the front of the unit
- Steel top reinforced with a stainless steel heat shield
- High density refractory bricks
- Cast iron door and ceramic glass
- Glass airwash system for a cleaner view of the flames
- EPA certified
- Proudly made in USA
- Non-catalytic combustion system
- Qualifies for the US tax credit
| Average overall efficiency-dry cordwood (HHV) | 75% |
| Fuel type | Dry cordwood |
| Maximum heat output-dry cordwood | 45,000 BTU/h |
| Optimum efficiency | 82% |
| Overall firebox volume | 1.1 ft³ |
| Maximum overall heat output rate | 31,700 BTU/h (9.29 kW) |
| Minimum overall heat output rate | 8,471 BTU/h (2.48 kW) |
| Recommended heating area | 250 - 1,200 ft² |
| EPA loading volume | 1.03 ft³ |
| Average overall efficiency-dry cordwood (LHV) | 80% |
| Average CO | 34 g/h |
| Optimum heat transfer efficiency | 78% |
| Overall dimension (Depth) | 21 7/8" |
| Overall dimension (Height) | 20 1/8" |
| Maximum burn time | 7 h |
| Average particulate emissions rate | 1.5 g/h |
| Overall dimension (Width) | 27 7/8" |
| Chimney diameter | 6" |
| Shipping Weight | 295 lb (134 kg) |
| Baffle type | Vermiculite |
| Canadian Standard (emissions) | CSA B415.1-10 |
| Canadian Standard (safety) | ULC S628 |
| Combustion technology | Non-catalytic |
| Door opening size - Width | 18 1/4" |
| Door opening size - Height | 7 7/8" |
| Door type | Single, glass with cast iron frame |
| Firebox size - Depth | 12 3/8" |
| Firebox size - Height | 8 3/4" |
| Firebox size - Width | 16 3/8" |
| Firebox lined with refractory bricks | Yes |
| Flue outlet diameter | 6" |
| Glass surface - W x H | 17 3/8" x 8 1/8" |
| Glass type | Ceramic glass |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Log positioning | Loading over width |
| Maximum log length | 17" (16" recommended) |
| Minimum chimney height | 12" |
| Premium quality blower (CFM) | 90 CFM included |
| Stainless-steel secondary-air system | Yes |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 3/16" |
| Certified according to applicable standards | CAN/USA accredited laboratory |
| Type of chimney | ULC-S635, CAN/ULC-S640, UL 1777 |
| USA Standard (emissions) | EPA |
| USA Standard (safety) | UL 1482, UL 737 |
| Warranty | Limited 5 years |
| Approved for a mobile home installation | No |
| Minimum fireplace opening (Width) | 25" |
| Minimum fireplace opening (Height) | 19" |
| Minimum fireplace opening (Depth) | 15 1/2" |
| Distance-center of the flue outlet to back unit | 5" |
| Distance-center of the flue outlet to side unit | 10 3/8" |
| Minimum fireplace opening (Height at the back) | 17 1/4" |
| Minimum fireplace opening (Width at the back) | 21 1/2" |
| Clearances to combustibles* | CanadaCan USAUsa | |
| Clearance - Base of the unit to ceiling** | 72"72" | |
|---|---|---|
| Clearance - Combustible side mantle to unit | 1"1" | |
| Clearance - Combustible top mantle to unit | 1"1" | |
| Clearance - Combustible side wall to unit | 16"16" | |
| Clearance - Top of the unit to a 12" combustible mantle shelf | 34"34" | |
| Clearance - Floor protection in front of the unit (from door opening) | 18"16" | |
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
