ESW0009

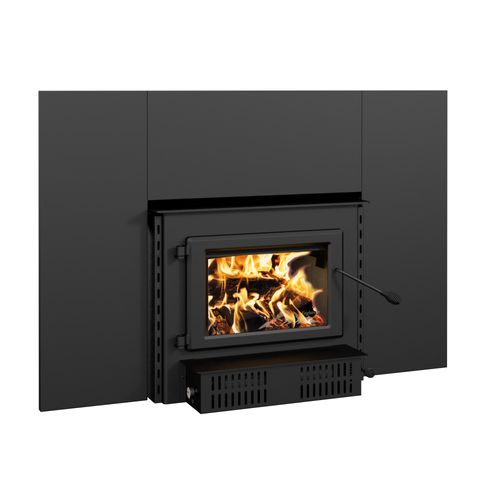

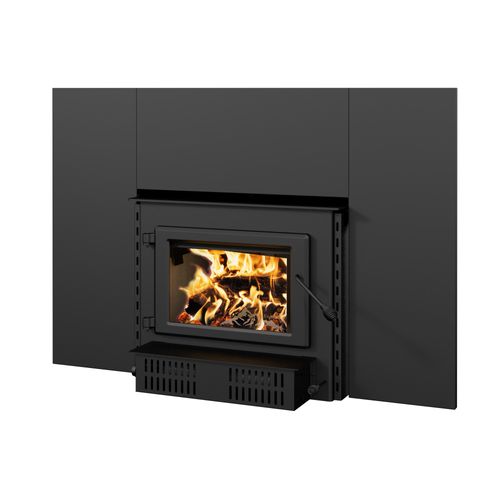

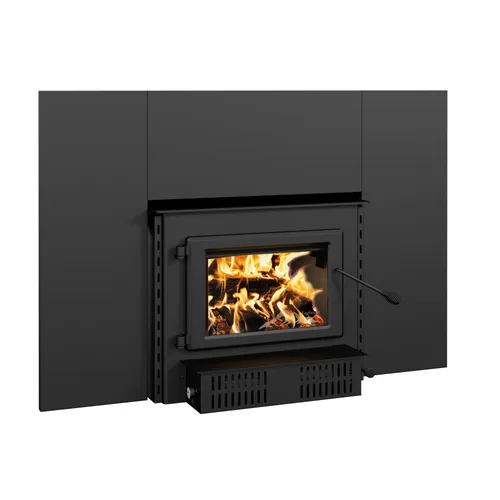

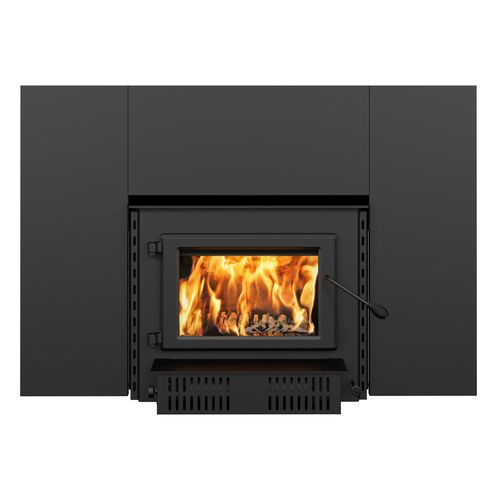

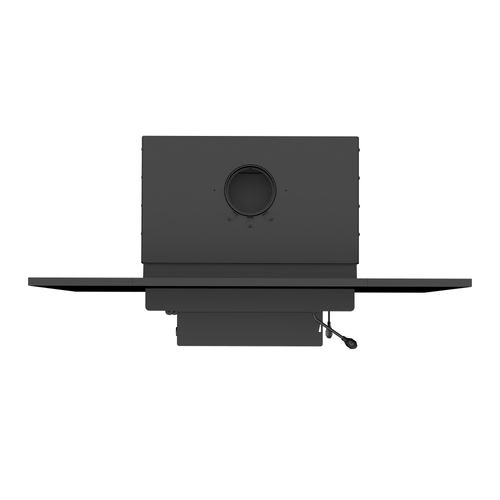

BLUE RIDGE 300-I

Review this product
USD $1,749.00
Free shipping - Curbside delivery
Out of stock
?Need assistance?Contact Us

Complete your purchase

AC01298

5"Ø FRESH AIR INTAKE KIT

Out of stock
USD $75.00

AC01315

RIGID FIRESCREEN

Out of stock
USD $140.00

AC01214

OFFSET LINER ADAPTOR

Out of stock
USD $270.00
Description

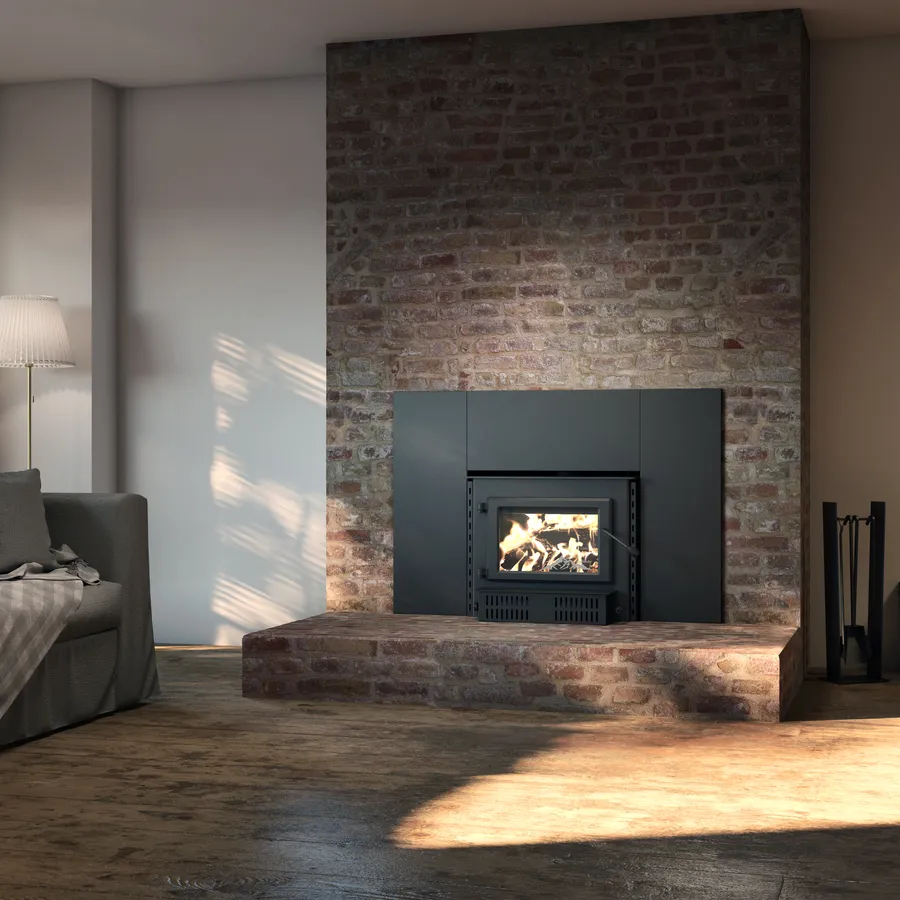

Ideal for heating up to 2,100 ft², the Blue Ridge 300-I is the ultimate versatile wood insert! With only 2.3 g/h of particulate emissions, this non-catalytic appliance gives off up to 75,000 BTU/h. It is the perfect choice to update your masonry fireplace and make it efficient!

Included: 34" x 50" faceplate, air intake damper and 144 CFM blower with thermodisc

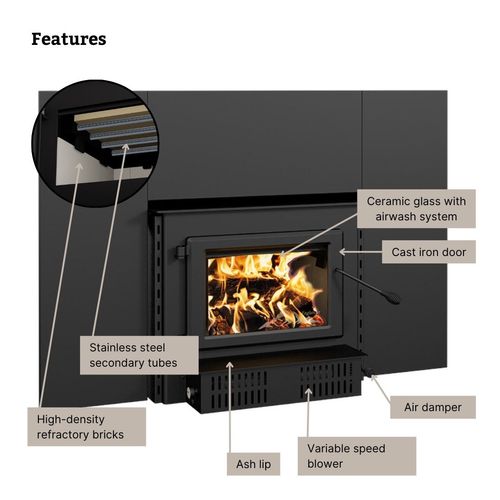

▪ High efficiency 2.4 ft³ firebox
▪ Up to 8 hours burn time
▪ Spring faceplate adjustment system which easily adapts to any type of hearth
▪ Steel top reinforced with a stainless steel heat shield
▪ Cast iron door and ceramic glass
▪ EPA certified
▪ Proudly made in USA
▪ Non-catalytic combustion system
▪ Qualifies for the 30% US tax credit

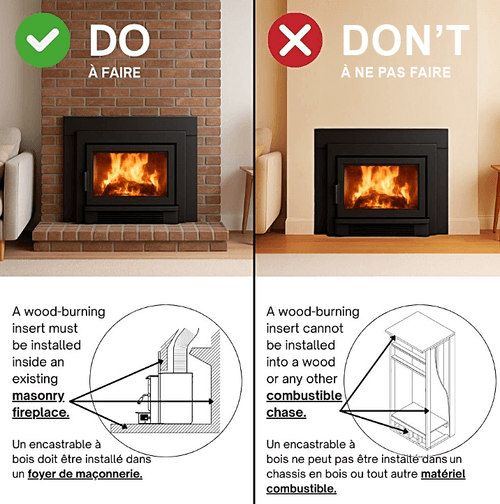

Wood insert manual | Safety notifications & general informationAppliance dimensionsInstallation & Operation Requirements
Specifications
Fuel typeDry cordwood (16" recommended)
Recommended heating area500 - 2,100 ft²
Overall firebox volume2.4 ft³
EPA loading volume1.95 ft³
Maximum burn time8 h
Maximum heat output-dry cordwood75,000 BTU/h
Minimum overall heat output rate14,200 BTU/h (4.16 kW)
Maximum overall heat output rate44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV)72 %
Average overall efficiency-dry cordwood (LHV)77 %
Optimum efficiency79 %
Optimum heat transfer efficiency76 %
Average particulate emission rate2.3 g/h
Average CO69 g/h
From serial #100
CertificationsEPA-2020
internalID160968
Mobile home approved No
Premium quality blower included (CFM)144
Certified according to applicable standardsBy an accredited laboratory (CAN/USA)
Combustion technologyNon-catalytic
Stainless-steel secondary-air systemYes

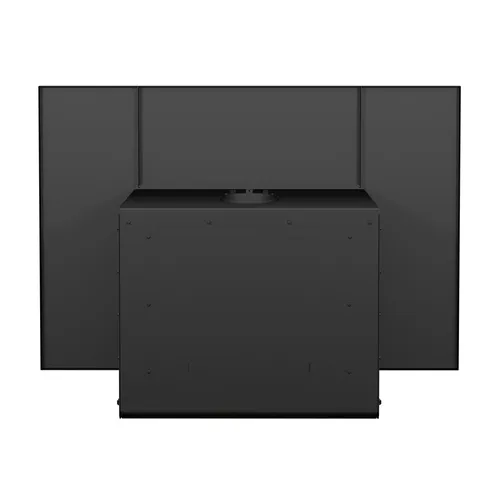

Flue outlet diameter6"
Distance-center of the flue outlet to back unit6 3/4"
Distance-center of the flue outlet to side unit13 1/2"
Recommended chimney diameter6"
Type of chimneyLiner ULC-S635, CAN/ULC-S640, UL 1777
Minimum chimney height12'
Overall dimension (Width)50"
Overall dimension (Height)34"
Overall dimension (Depth)26 1/2"
Door typeSingle, glass with cast iron frame
Door opening size (Width)17 1/2"
Door opening size (Height)9"
Glass typeCeramic glass
Glass surface - W x H14 7/8" x 9 1/4"
Steel thickness-body3/16"
Steel thickness-top1/4"
Firebox size (Width)21"
Firebox size (Height)12"
Firebox size (Depth)16 1/2"
Maximum log length20" oriented East-West
Log positioningLoading over width
Firebox lined with refractory bricksYes
Baffle typeHigh quality vermiculite
Minimum fireplace opening (Width)28 7/8"
Minimum fireplace opening (Height)23 3/8"
Minimum fireplace opening (Depth)15 3/4"
High-efficiency certified applianceYes, EPA 2020 approved
Canadian Standard (emissions)CSA B415.1-10
USA Standard (emissions)EPA
Canadian Standard (safety)ULC S628
USA Standard (safety)UL 1482, UL 737
WarrantyLimited 5 years
Shipping weight365 lb (165 kg)
Clearances to combustibles*
CanadaCan
United-StatesUsa
Clearance - Combustible side wall to unit16"16"
Clearance - Combustible side mantle to unit9"9"
Clearance - Combustible top mantle to unit27"27"
Clearance - Top of the unit to a 12" combustible mantle shelf27"27"
Clearance - Base of the unit to ceiling**84"84"

*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
