BLUE RIDGE 100
Out of stock
250 - 1,200 ft²Small17" (16" recommanded)1.8 g/hComplete your purchase

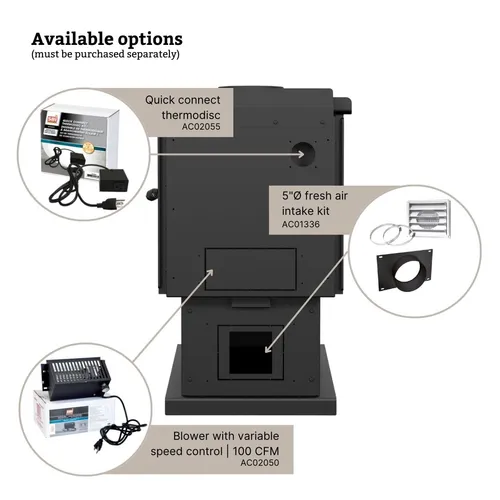

AC01336

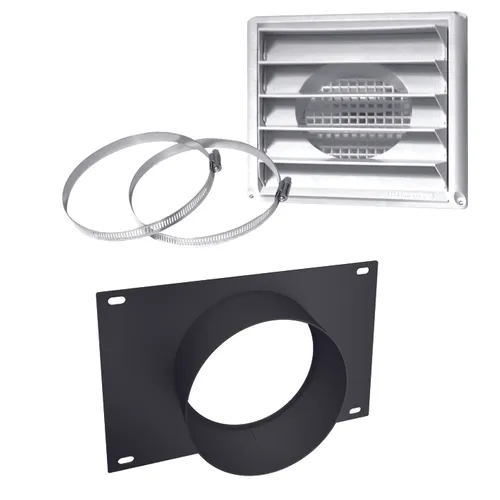

5"Ø FRESH AIR INTAKE KIT
Out of stock
AC02050

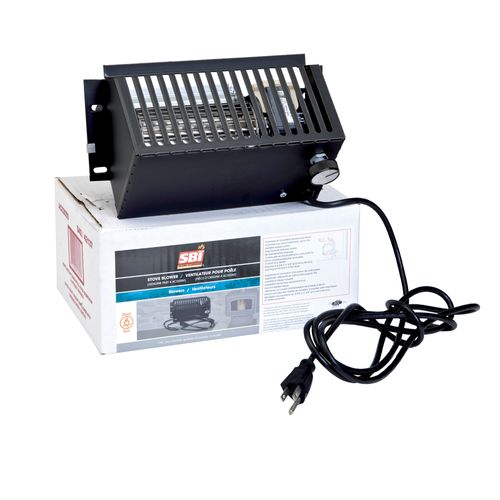

BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM
Out of stock
AC02055
QUICK CONNECT THERMODISC

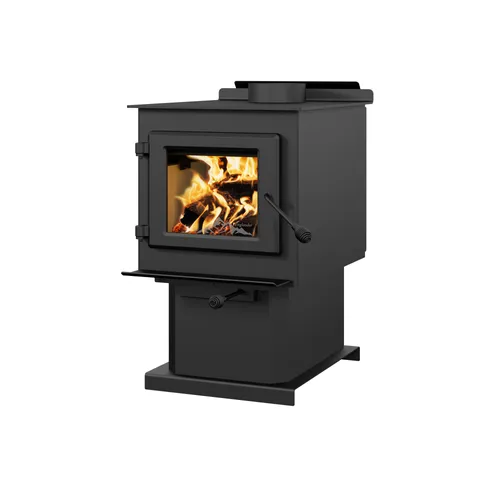

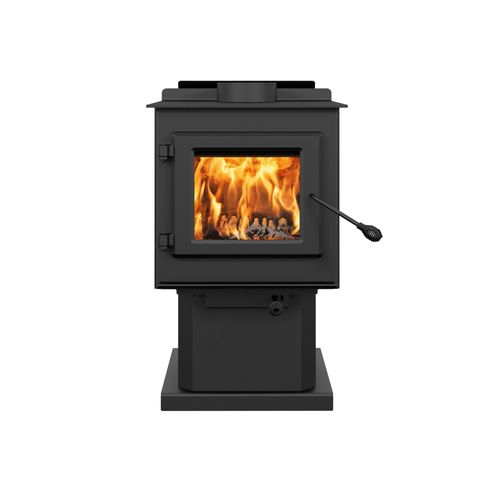

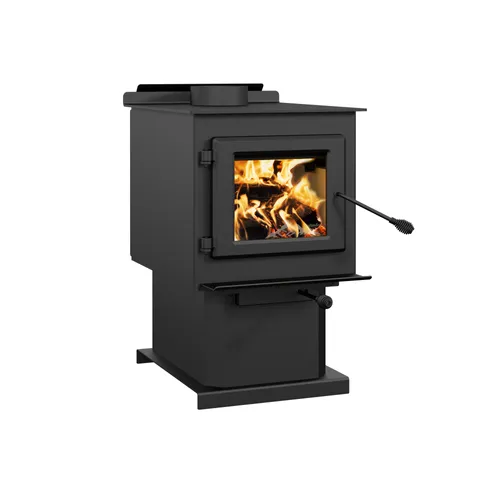

Out of stockOur most compact unit in the series, the Blue Ridge 100 is the perfect choice for heating homes up to 1,200 ft². With only 1.8 g/h of particulate emissions, this EPA certified wood stove puts out an impressive 45,000 BTU/h. The bottom of its combustion chamber is deeper than other models in its category and allows a greater accumulation of ashes, and thus able to empty them less frequently. A simple model; reliable and robust.

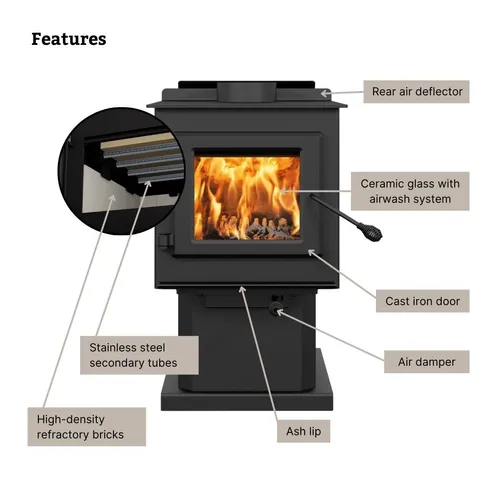

Included: pedestal, ash lip, air intake damper & rear air deflector
▪ High efficiency 1.8 ft³ firebox, ideal for tight spaces
▪ Up to 5 hours burn time
▪ Steel top reinforced with a stainless steel heat shield
▪ Cast iron door and ceramic glass
▪ EPA certified
▪ Proudly made in USA
▪ Non-catalytic combustion system
▪ Certified for mobile home and alcove installation
▪ Qualifies for the 30% US tax credit
Appliance dimensionsInstallation & Operation Requirements
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area | 250 - 1,200 ft² |
| Overall firebox volume | 1.8 ft³ |
| EPA loading volume | 1.55 ft³ |
| Maximum burn time | 5 h |
| Maximum heat output-dry cordwood | 45,000 BTU/h (13.2 kW) |
| Minimum overall heat output rate | 12,124 BTU/h (3.55 kW) |
| Maximum overall heat output rate | 26,700 BTU/h (7.83 kW) |
| Average overall efficiency-dry cordwood (HHV) | 74 % |
| Average overall efficiency-dry cordwood (LHV) | 79 % |
| Optimum efficiency | 80 % |
| Optimum heat transfer efficiency | 79 % |
| Average particulate emission rate | 1.8 g/h |
| Average CO | 74 g/h |
| From serial # | 100 |
| Certifications | EPA-2020 |
| internalID | 160961 |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |

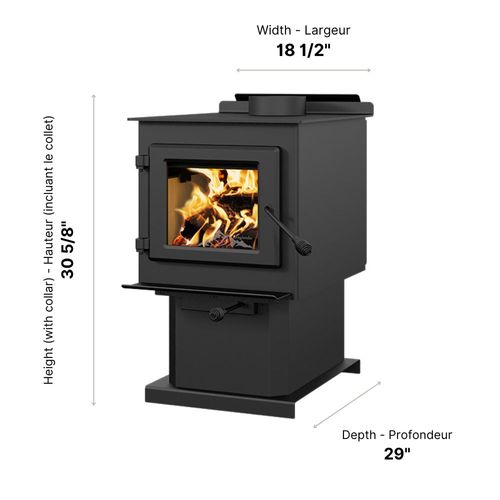

| Overall dimension (Width) | 18 1/2" |
| Overall dimension (Height) | 30 5/8" |
| Overall dimension (Depth) | 29" |
| Premium quality blower included (CFM) | Optional |
| Combustion technology | Non catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Distance-center of the flue outlet to back unit | 6 5/8" |
| Distance-center of the flue outlet to side unit | 9 1/4" |
| Recommended chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12' |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 12" |
| Door opening size (Height) | 7 5/8" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 9 5/8" x 8 1/8" |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 1/4" |
| Firebox size (Width) | 14 1/4" |
| Firebox size (Height) | 11 3/4" |
| Firebox size (Depth) | 19 3/8" |
| Log positioning | Loading over depth |
| Maximum log length | 17" (16" recommanded) |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | 1482, UL 737 |
| Warranty | 5 years limited |
| Shipping weight | 283 lb (128 kg) |
| Clearances to combustibles* | CanadaCan United-StatesUsa |
| Single wall pipeDouble wall pipeSingle wall pipeDouble wall pipe | |
| Clearance - Back wall | 14"6"12"6" |
|---|---|
| Clearance - Side wall | 18"18"18"18" |
| Clearance - Corner | 11"7"11"7" |
| Clearance - Base of the unit to ceiling** | 84"84"84"84" |
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
