BLUE RIDGE 500
Complete your purchase

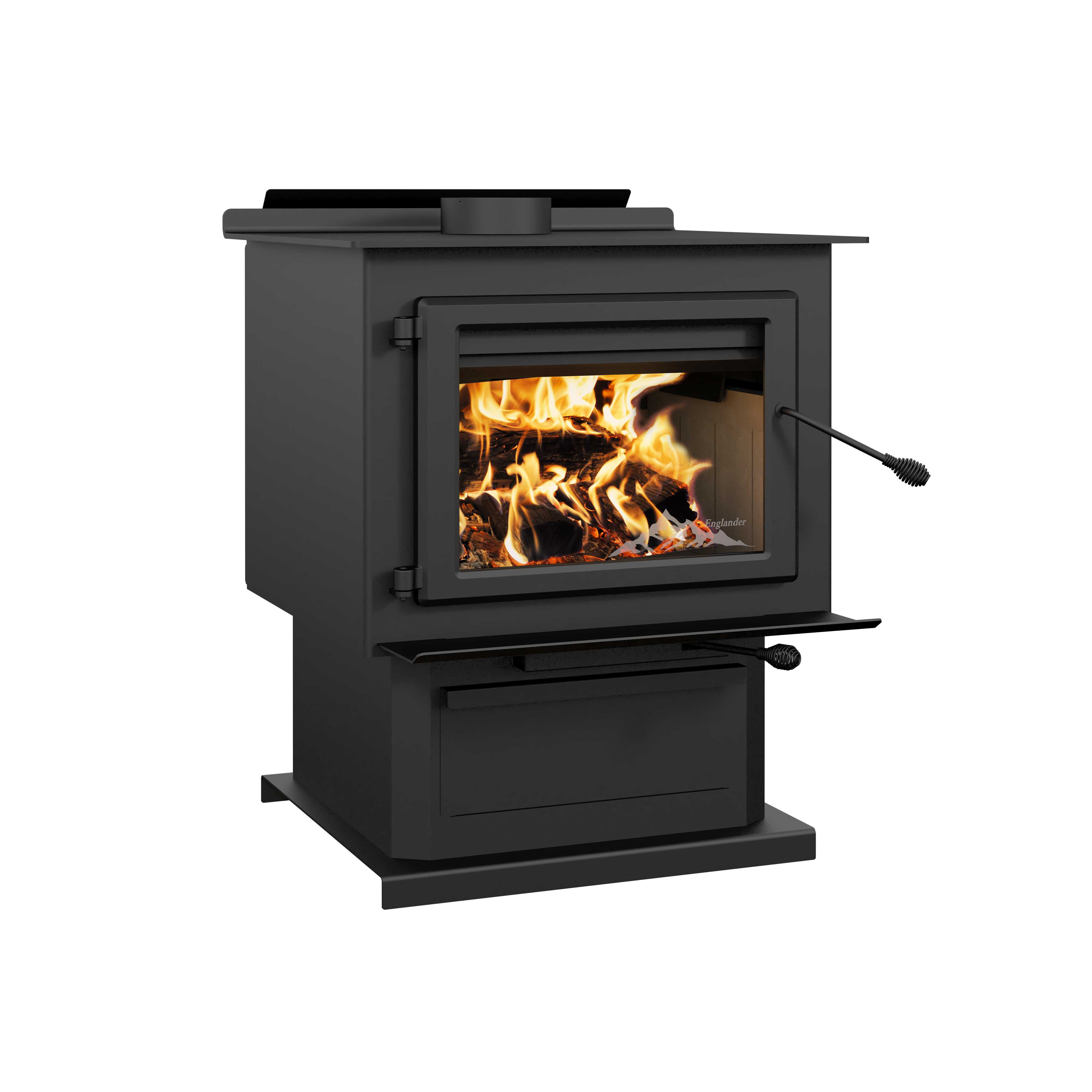

Ideal for heating spaces up to 2,700 ft², the Blue Ridge 500 is a wood stove with an impressive output of 110,000 BTU/h. EPA certified at 1.6 g/h, this non-catalytic appliance represents an eco-responsible heating source. Its very large combustion chamber allows logs to be loaded across the width and depth.
Included: pedestal, ash drawer & lip, air intake damper & rear air deflector
▪ High efficiency 3.5 ft³ firebox
▪ Up to 10 hours burn time
▪ 5/16" steel top reinforced with a heat shield
▪ High density refractory bricks
▪ Cast iron door and ceramic glass
▪ EPA certified
▪ Proudly made in USA
▪ Non-catalytic combustion system
▪ Certified for mobile home and alcove installation
▪ Qualifies for the 30% US tax credit
Fuel type | Dry cordwood (16" recommended) |
Recommended heating area | 1,000 - 2,700 ft² |
Overall firebox volume | 3.5 ft³ |
EPA loading volume | 2.88 ft³ |
Maximum burn time | 10 h |
Maximum heat output-dry cordwood | 110,000 BTU/h |
Minimum overall heat output rate | 17,200 BTU/h (5.0 kW) |
Maximum overall heat output rate | 57,800 BTU/h (16.9 kW) |
Average overall efficiency-dry cordwood (HHV) | 71 % |
Average overall efficiency-dry cordwood (LHV) | 76 % |
Optimum efficiency | 77 % |
Optimum heat transfer efficiency | 75 % |
Average particulate emission rate | 1.6 g/h |
Average CO | 73 g/h |
Alcove installation approved | Yes |
Mobile home approved | Yes, with fresh air intake |
Certified according to applicable standards | CAN/USA accredited laboratory |

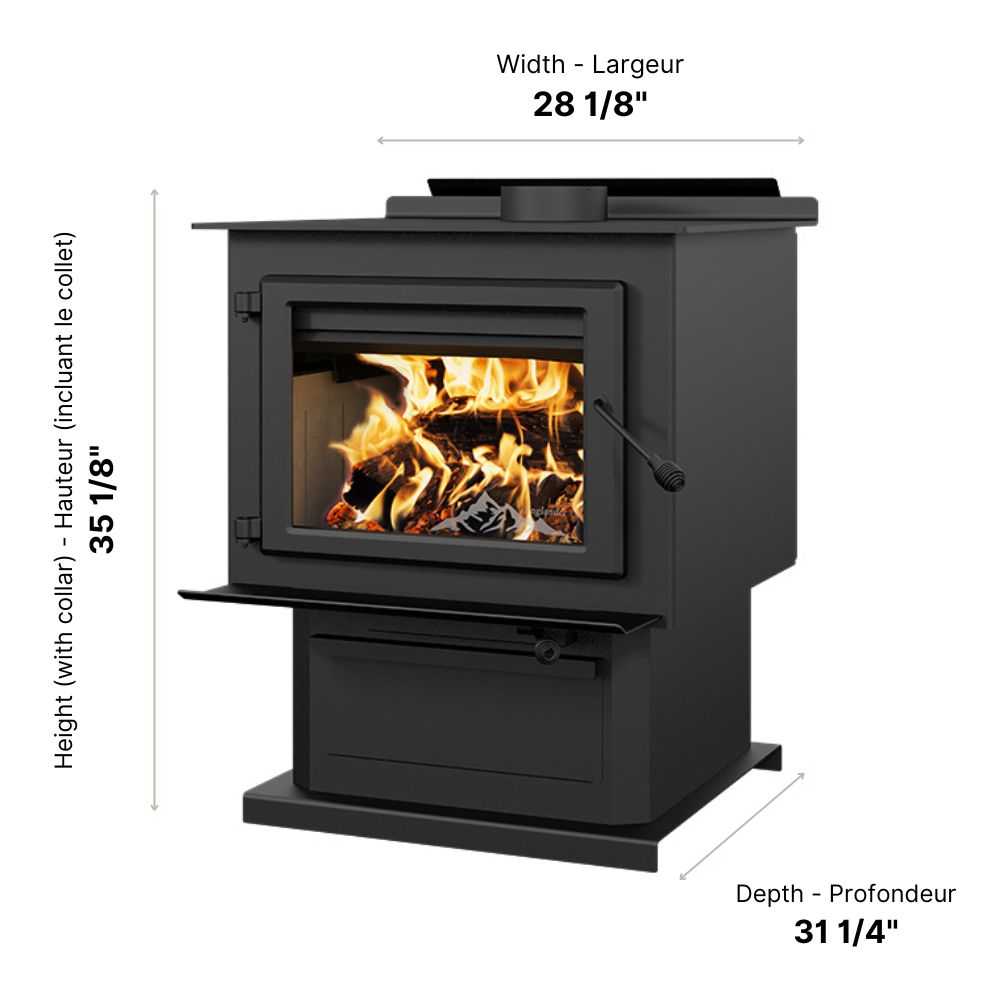

Overall dimension (Width) | 28 1/8" |
Overall dimension (Height) | 35 1/8" |
Overall dimension (Depth) | 31 1/4" |
Premium quality blower included (CFM) | Optional |
Combustion technology | Non-catalytic |
Stainless-steel secondary-air system | Yes |
Flue outlet diameter | 6" |
Distance-center of the flue outlet to back unit | 8" |
Distance-center of the flue outlet to side unit | 14 1/8" |
Recommended chimney diameter | 6" |
Type of chimney | ULC-S629, UL 103 HT (2100 °F) |
Minimum chimney height | 12' |
Door type | Single, glass with cast iron frame |
Door opening size (Width) | 19" |
Door opening size (Height) | 9 7/8" |
Glass type | Ceramic glass |
Glass surface - W x H | 16 5/8" x 11 3/4" |
Steel thickness-body | 3/16" |
Steel thickness-top | 5/16" |
Firebox size (Width) | 22 7/8" |
Firebox size (Height) | 13" |
Firebox size (Depth) | 20 1/8" |
Log positioning | Loading over width and over depth |
Maximum log length | 22" oriented East-West |
Firebox lined with refractory bricks | Yes |
Baffle type | High quality vermiculite |
High-efficiency certified appliance | Yes, EPA 2020 approved |
Canadian Standard (emissions) | CSA B415.1-10 |
USA Standard (emissions) | EPA |
Canadian Standard (safety) | ULC S627 |
USA Standard (safety) | UL 1482, UL 737 |
Warranty | Limited 5 years |
Shipping weight | 480 lb (218 kg) |
Clearances to combustibles* | CanadaCan United-StatesUsa |
Single wall pipeDouble wall pipeSingle wall pipeDouble wall pipe | |
Clearance - Back wall | 13 3/4"8"13 3/4"8" |
---|---|
Clearance - Side wall | 22"19"22"19" |
Clearance - Corner | 12"12"12"12" |
Clearance - Base of the unit to ceiling** | 84" 84" 84" 84" |
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
